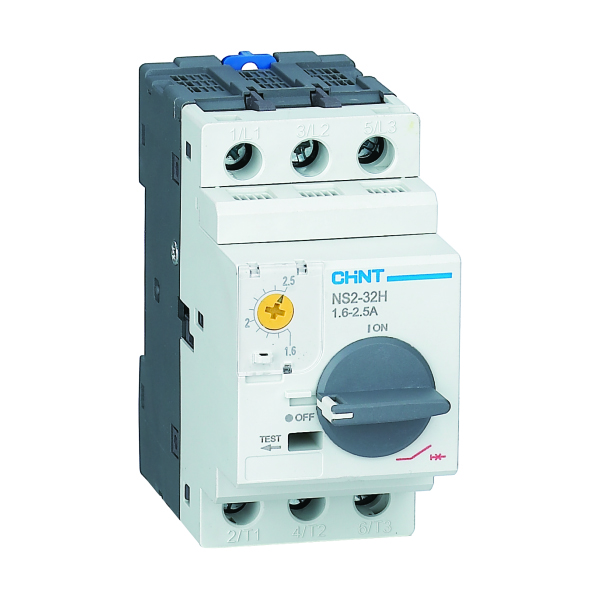

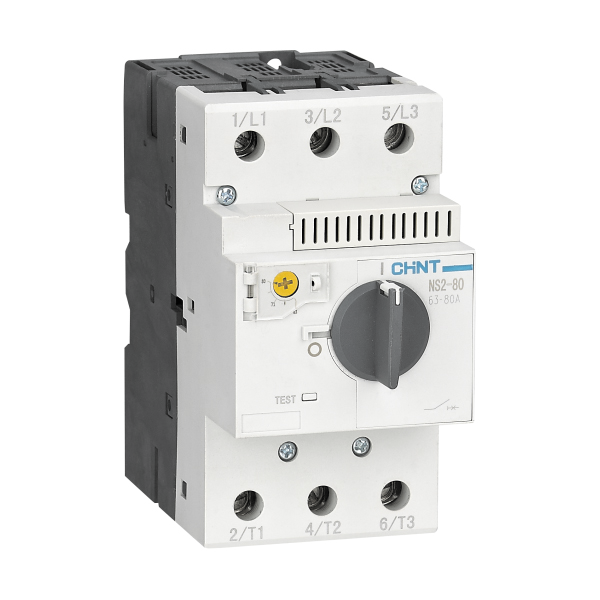

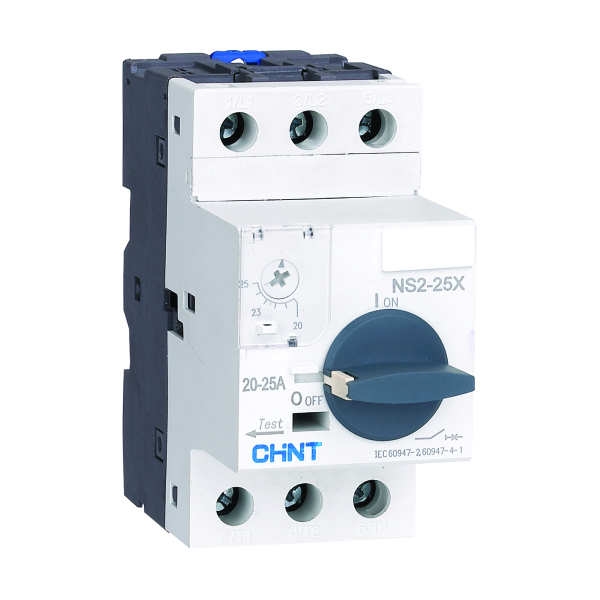

Chint NS2 Motor Protection Circuit Breaker NS2-25 NS2-32 NS2-25X NS2-32X NS2-80 NS2-80B CHNT Guarda Motor Manual Motor Starter

Description Place of Origin : China Brand Name : Chint Model Number : NS2 Chint NS2 Motor Protection Circuit Breaker NS2-25 NS2-32 NS2-25X NS2-32X NS2-80 NS2-80B CHNT Guarda Motor Manual Motor Starter   Chint NS2 Manual Motor Starter   1 Electric ratings: AC690V, 25A, 32A, 80A;   2.1 Certificates: SEMKO, CE, EAC, RCC, UL; 2.2 Standard: IEC/EN 60947-2, IEC60947-4-1   3.1 Temperature: -5℃~ 40℃, average temperature in 24 hours not exceed 35℃3.2 Altitude: not exceed 2000m3.3 Air conditions:      At mounting site, relative humidity not exceed 50% at the max temperature of 40℃, higher relative humidity is allowable under       lower temperature, for example, RH could be 90% at 20℃3.4 Pollution grade: Grade Ⅲ3.5 Trip class:      10A(NS2-25, NS2-25X, NS2-32, NS2-32X,NS2-32H)      10 (NS2-80, NS2-80B)3.6 Rated operational system: Continuous operational system3.7 Mounting conditions:      The inclination between the mounting plane and the vertical plane shall not exceed 5°      The product shall be installed and operated at a place without obvious shake, impact and vibration.
