QCX2 LE1-D EKF KME LE1-D09 LE1-D12 LE1-D18 LE1-D25 LE1D-32 LE1-D40 LE1-D50 LE1-D65 LE1-D80 LE1-D95 IP65 Magnetic Starter

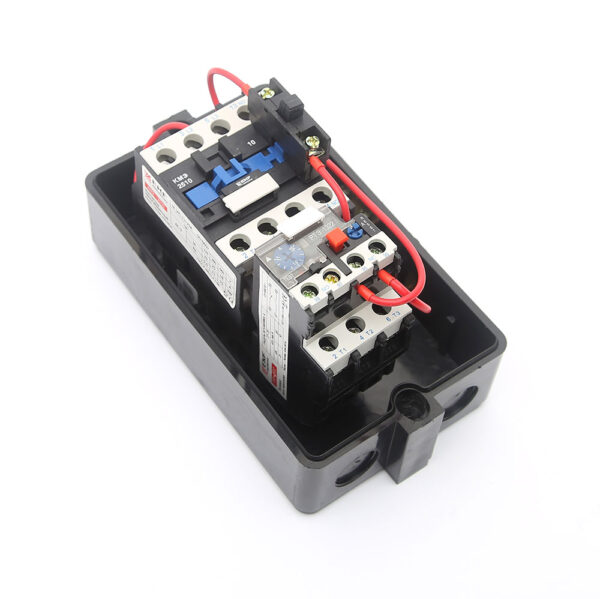

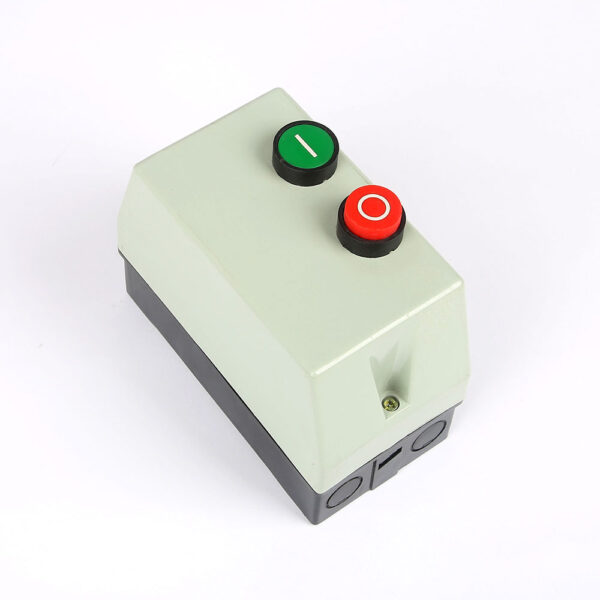

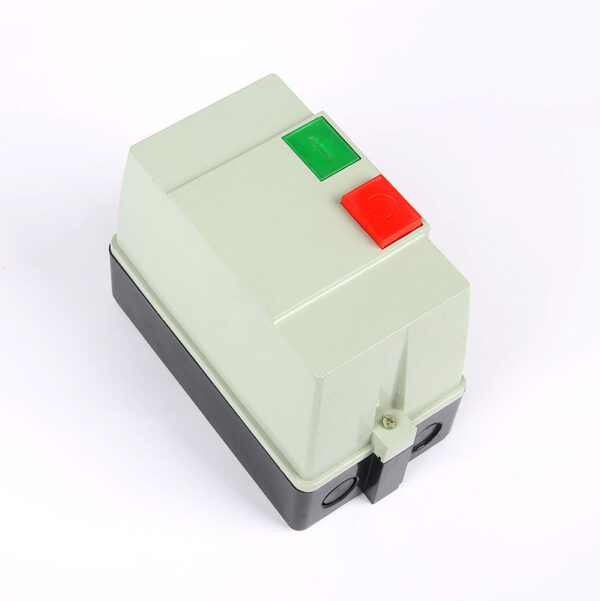

Description Place of Origin : China Brand Name : OEM brand Model Number : QCX2 (LE1-D) Electricity Type : AC QCX2 LE1-D EKF KME LE1-D09 LE1-D12 LE1-D18 LE1-D25 LE1D-32 LE1-D40 LE1-D50 LE1-D65  LE1-D80 LE1-D95 IP65 Magnetic Starter   Application  QCX2 (LE1-D) series magnetic starter is suitable for starting and stopping 3-phase squirrel-cage motor in the circuit of AC 50/60Hz, rated insulation voltage 690V, under AC3 utilization category, rated operational voltage 380V, rated operational current range from 9A to 95A. The magnetic starter with thermal overload relay are protect AC 3-phase motor against overland and phase losing.   QCX2 (LE1-D) Magnetic starter has a case with protection category IP65, JRS4 (LR2D) thermal overload relay connect with terminals through three wires, and fix together with CJX2 (LC1-D) contactor. There are two buttons on the case, green one is “turn on” , red one is “turn off ” or“reset”.   Type RatedCurrent(A) Maximum Power AC3 duty (KW) SuitableThermal Relay(A) 220V230V 380V400V 415V 440V 500V 660V690V QCX2-9 9A 2.2KW 4KW 4KW 4KW 5.5KW 5.5KW LR2-D1312LR2-D1314 QCX2-12 12A 3KW 5.5KW 5.5KW 5.5KW 7.5KW 7.5KW LR2-D1316 QCX2-18 18A 4KW 7.5KW 9KW 9KW 10KW 10KW LR2-D1321 QCX2-25 25A 5.5KW 11KW 11KW 11KW 15KW 15KW LR2-D1322LR2-D2353 QCX2-32 32A 7.5KW 15KW 15KW 15KW 18.5KW 18.5KW LR2-D2355 QCX2-40 40A 11KW 18.5KW 22KW 22KW 22KW 30KW LR2-D3353LR2-D3355 QCX2-50 50A 15KW 22KW 25KW 30KW 30KW 33KW LR2-D3357LR2-D3359 QCX2-65 65A 18.5KW 30KW 37KW 37KW 37KW 37KW LR2-D3361 QCX2-80 80A 22KW 37KW 45KW 45KW 55KW 45KW LR2-D3363LR2-D3365 QCX2-95 95A 25KW 45KW 45KW 45KW 55KW 45KW LR2-D3365
