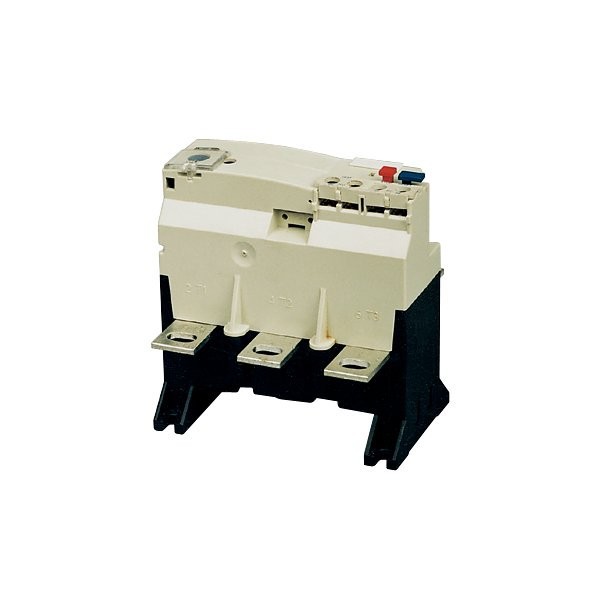

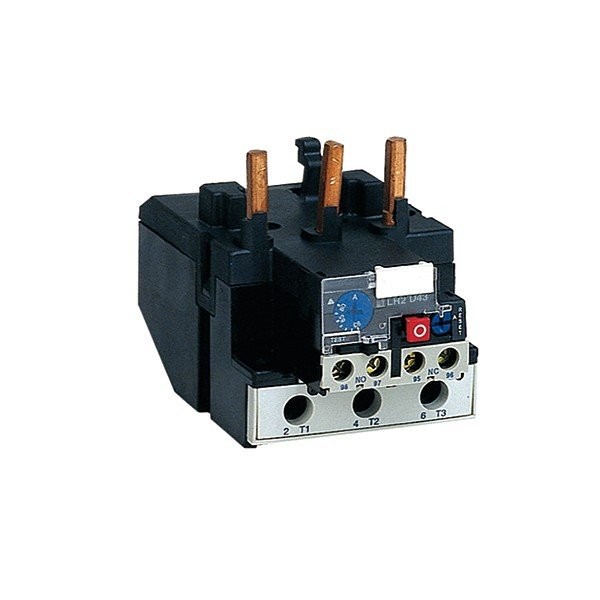

LR2D Thermal Relay EKF equivalent RTE RTE-13 RTE-23 RTE-33 LR2-D33 LR2-D23 LR2-D13 LR2D thermal overload relay

Description Place of Origin : China Brand Name : OEM brand Model Number : LR2-D Theory : Thermal Relay LR2D Thermal Relay EKF equivalent RTE RTE-13 RTE-23 RTE-33 LR2-D33 LR2-D23 LR2-D13 LR2D thermal overload relay   Application This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload. The r e lay has different mechanism and temperature compensation & can be pluged in LC1-D series AC contact. It is the most advanced thermal relay in the nineties in the world.   Characteristics a. Fundamental parameter of the main circuit (a). Rated insulation voltage 660V. (b). Rated working current 25, 36, 93A. (c). The regulator seal of rated setting current and setting. (d). Current of the thermal component b. Auxiliary circuit (a). There are one pair of N/O and N/C contact with electric insuation. (b). Rated insulation voltage 500V. (c). Rated frequency 50-60Hz. (d). Use group, rated working voltage, appoint thermal current and rated current.
