LE1D Magnetic Starter 220V 230V 380V 3 Phase 2.2kW 4kW 5.5kW 7.5kW 11kW 15kW 18.5kW 22kW 30kW 37kW 45kW LE1D Motor DOL Starter

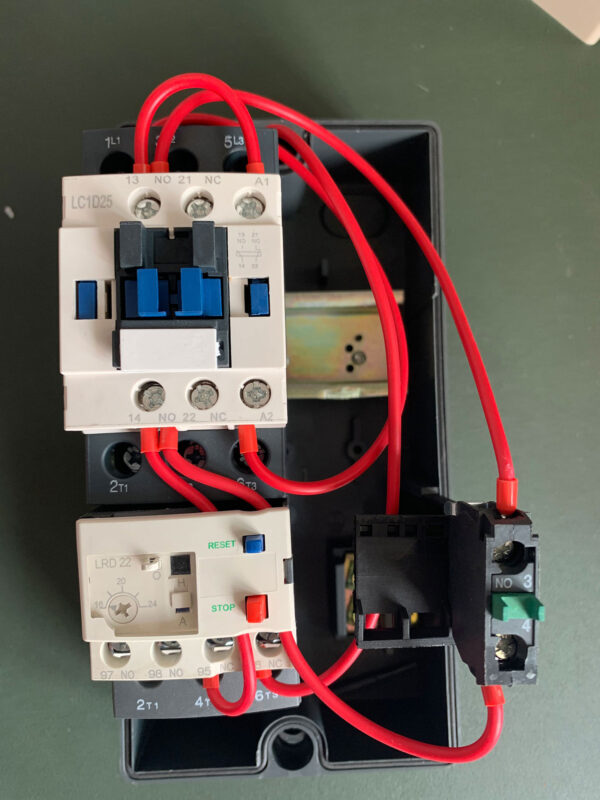

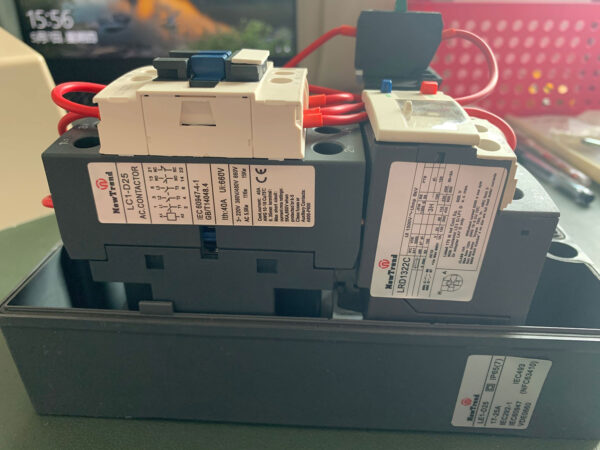

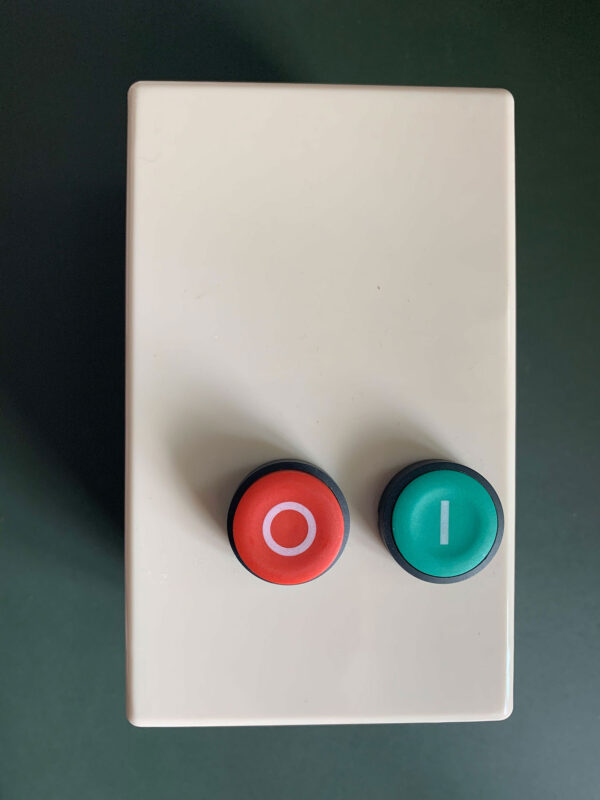

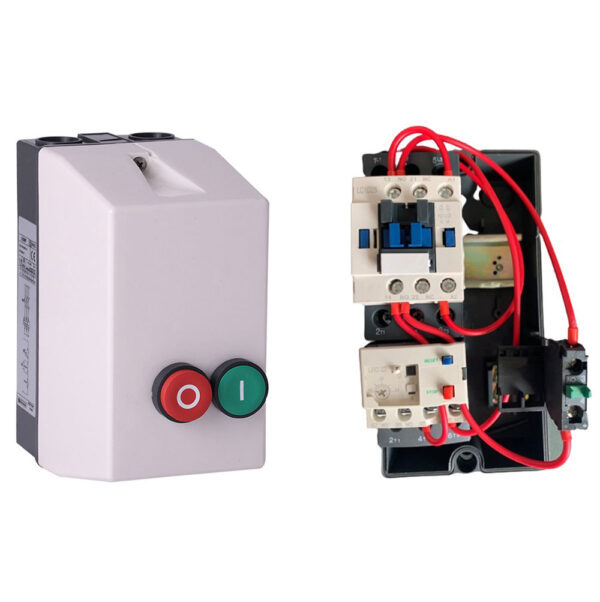

Description Place of Origin : China Brand Name : OEM brand Model Number : LE1D Electricity Type : AC LE1D Magnetic Starter 220V 230V 380V 3 Phase 2.2kW 4kW 5.5kW 7.5kW 11kW 15kW 18.5kW 22kW 30kW 37kW 45kW LE1D Motor DOL Starter   LE1D Enclosed DOL starters, with overload relay   Control Protection against Overloads   –  ON/OFF motor starters: 1-way rotation control of 3-phase motor, by green & red pushbuttons   –  Motor protection against overload: manual reset with the red pushbutton or remotely.   Range:   –  8 direct-on-line starters for 3P motors from 4 to 30 kW (9 to 65 A AC-3)   –  Choice of up to 12 AC coil voltages for control supply circuit (depending on starter rating).   Enclosures characteristics:   –  Conforming to IEC 60947-4-1 standard   –  Degree of protection according IEC 60529:      IP65,      IK07 for LED09…D35,      IK09 for LE1D40A…D65A   –  Ambient air temperature in operation -5 to 40°C   –  Operating position: same that as contactors   –  Material: LE1D09… D35 polycarbonate   –  LEpD40A… D65A steel sheet.   Included:     pre-wired LC1D contactor     2pushbuttons.     LRD overload relay of the required rating must be ordered separately and wired at bottom of the contactor.
